Bobcat High Tunnel Kit – Pro

Build your own durable, professional-grade high tunnel.

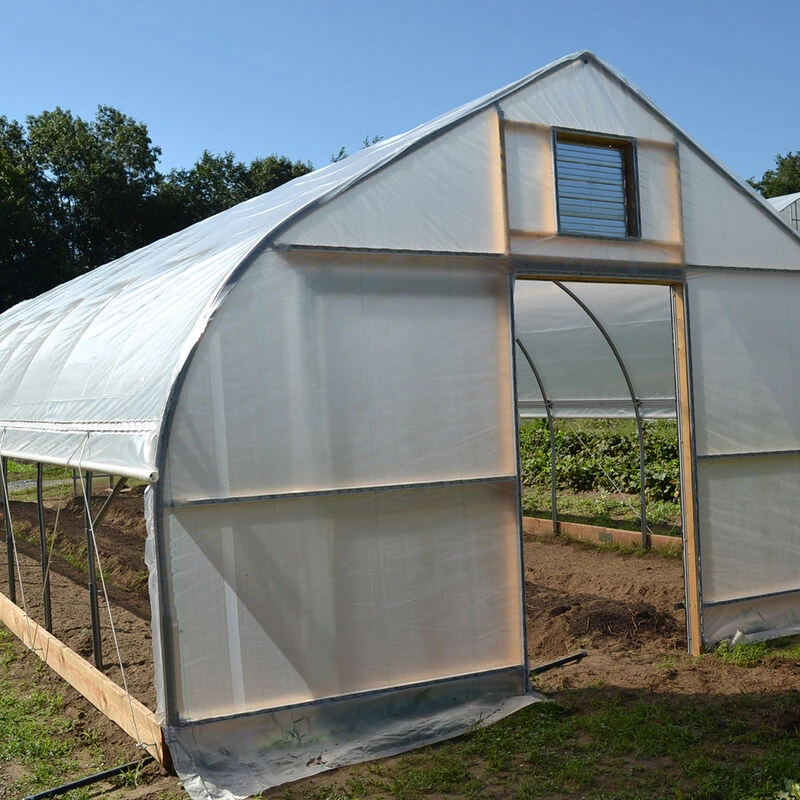

An easy-to-assemble kit ships to you with the materials and hardware needed to build a 16′ x 48′ gothic-style high tunnel. The perfect size for small farms and homesteads. Offers the same features as our #6795 Standard Kit, but with a few added features for building a more professional tunnel. End walls are left unfinished, allowing you the freedom to build them out the way you want. Choose from optional add-on features below. NOTE: Truss Support Kit (#6790) is required for areas with snow.

Benefits & Features

• High-quality materials
• Easy to assemble
• Very resilient to wind and easily sheds snow
• More head room and vertical space for crop production
• Gothic shape with 4′ bow spacing
• Purlin and wind bracing adds necessary rigidity to the structure
• 4′-long ground posts for securely anchoring your tunnel

Includes

• Steel frame and hardware for assembly
• Professional quality roll-up sides with double poly latch channel and gear boxes to hold them at your desired height
• Durable woven-poly panels for end walls

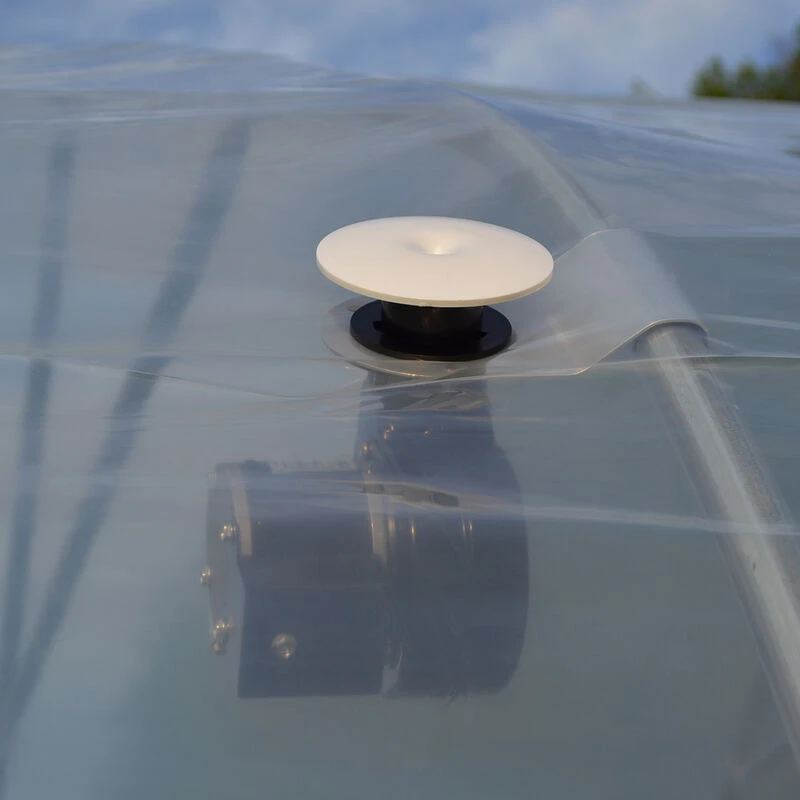

• Inflatable double-poly roof with blower fan for a few extra degrees of cold-weather protection
• Automatic Ventilation Kit (#6791)
• 6 mil. clear poly film for roof and end walls (4-year lifespan)
• Hardware needed to attach wooden end walls
• Hardware for attaching wooden baseboards
• Ground post driver
• 5/16″ magnetic nut driver
• 3/8″ drill bit
• Line level
• Mason line
• Detailed assembly instructions

Optional Add-Ons

• Truss Support Kit (#6790)
• Steel End Wall Kit (#6793)
• Sliding Door Kit (#6792)

Specs

• Finished Structure: 16′ x 48′
• Peak Height: Approximately 11′
• Side Wall Height: 5′
• Frame Specs: Steel tubing (1.315 OD, 17 gauge)
• Ground Post Specs: Steel tubing (1.66 OD, 14 gauge)

Notes

• 110 V power at your greenhouse is required for use of this kit
• Lumber for end walls must be sourced locally (unless purchasing the add-on Steel End Wall Kit #6793). See assembly manual for details on planning your end walls.
• 2×6 or 2×8 lumber for baseboards must be sourced locally. You will need 48′ for each side.
• Truss Support Kit (#6790) is required for regions experiencing snowfall.
